🔥🎁🧠 Interactive Logic Gate Circuit Board — Learn Digital Electronics Through Hands-On Experiments ⚡

Key Features & Engineering Highlights

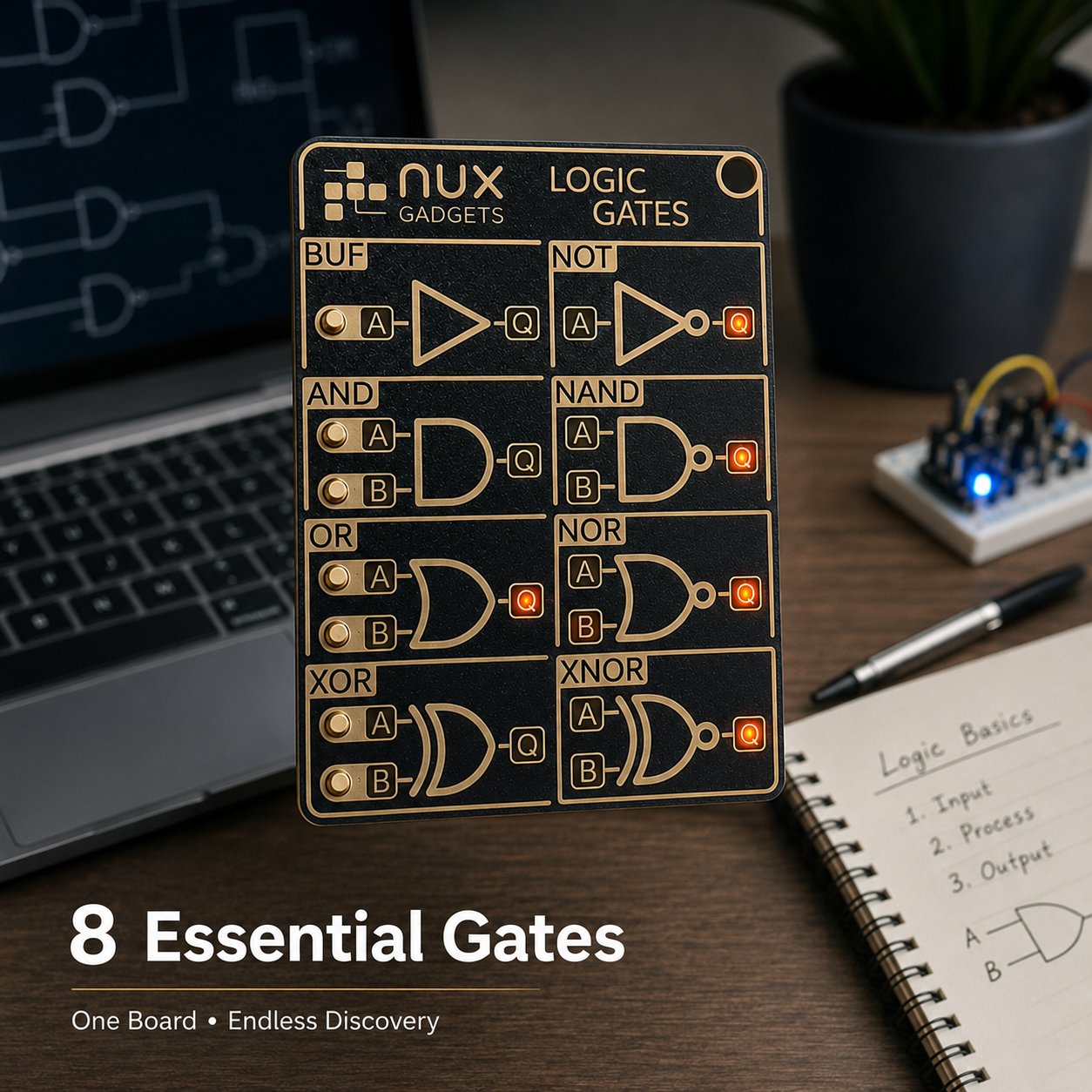

🔍 8 Essential Logic Gates In One Board:

✅ BUF: Signal follows input directly

✅ NOT: Reverses the input signal

✅ AND: Output activates only when both inputs are ON

✅ NAND: Opposite behavior of AND gate

✅ OR: Activates when either input is ON

✅ NOR: Activates only when both inputs are OFF

✅ XOR: Detects different input states

✅ XNOR: Detects matching input states

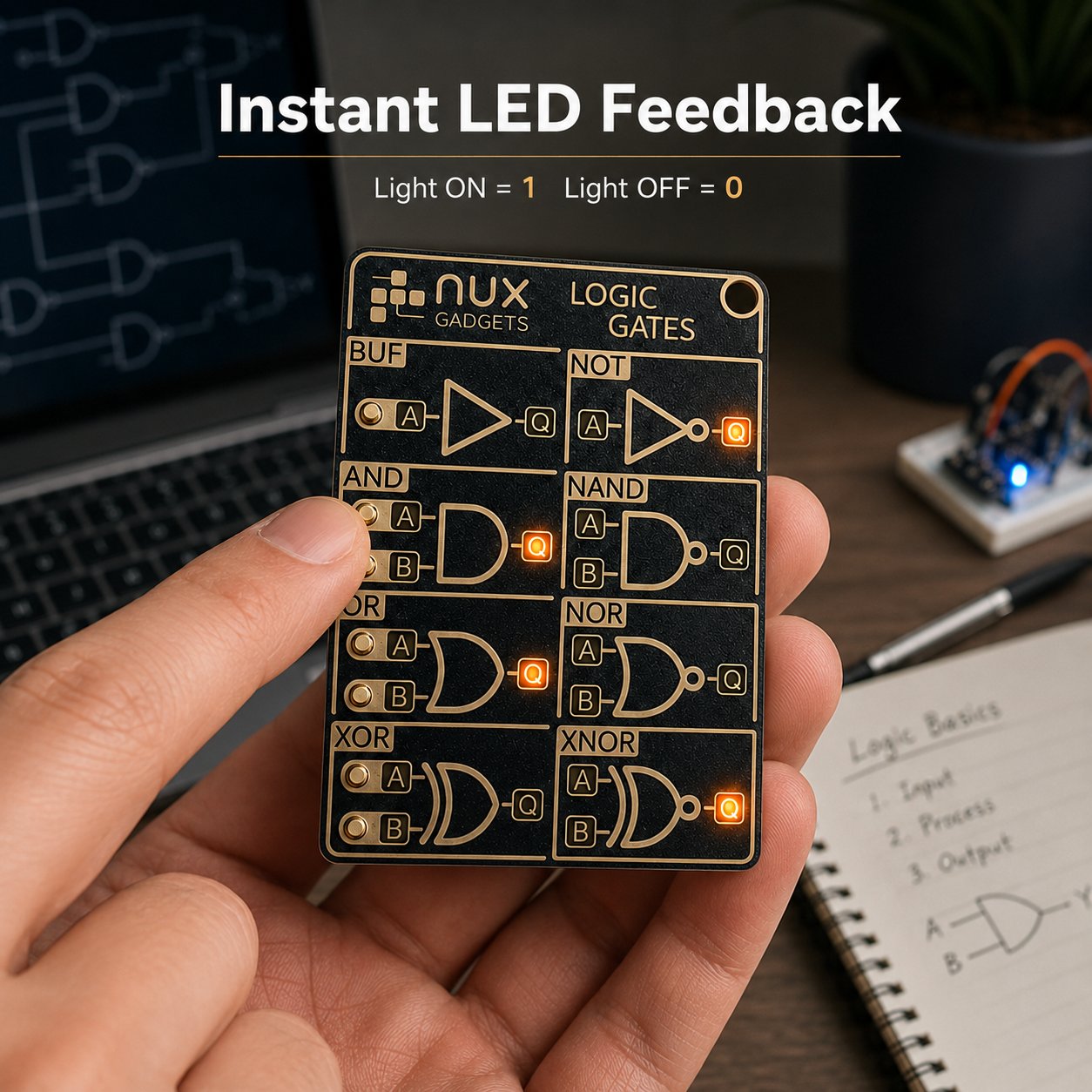

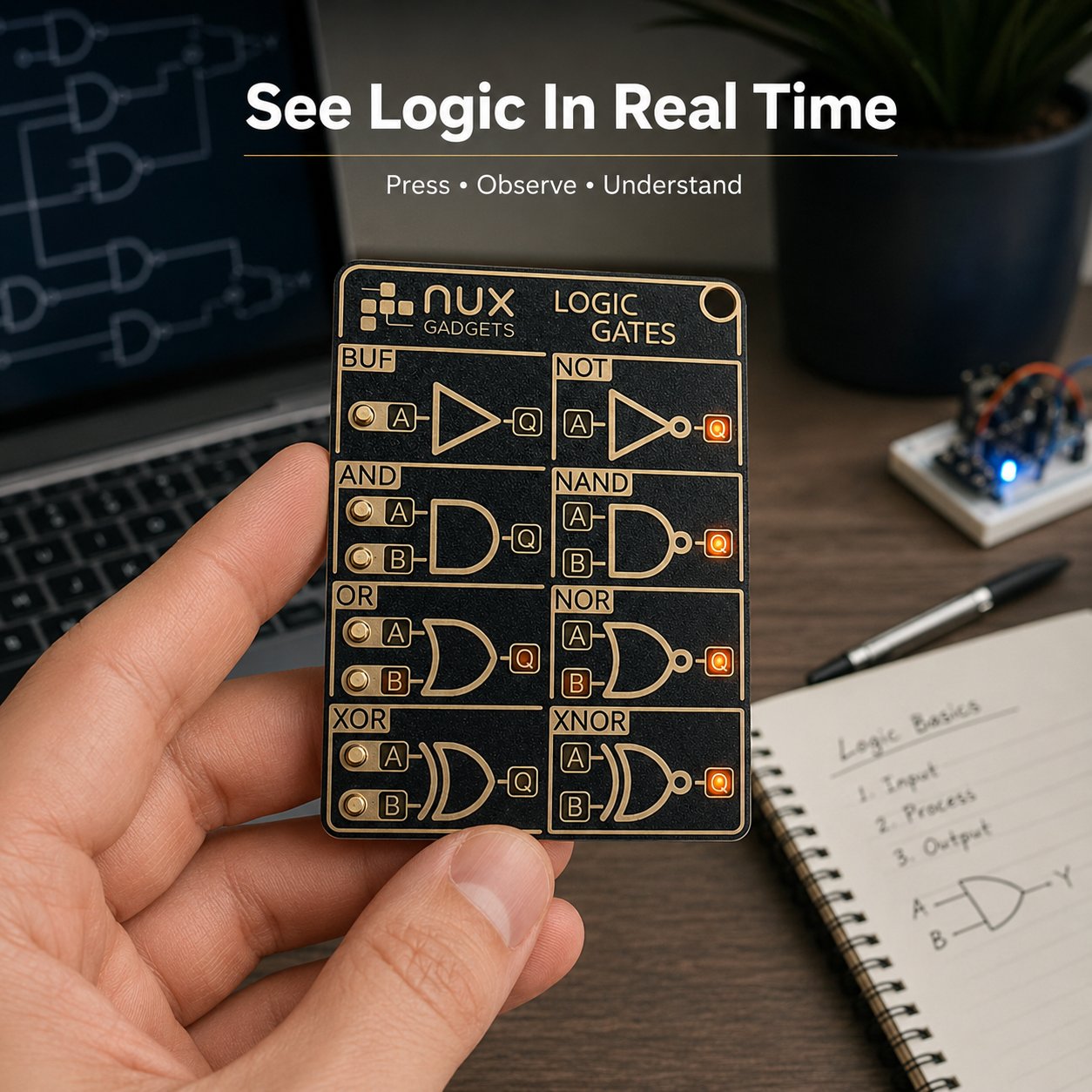

💡 Real-Time LED Logic Feedback:

Forget memorizing truth tables! Every button press creates an immediate visual response:

🟢 LED ON = Logic High “1”

⚫ LED OFF = Logic Low “0”

🎓 Perfect Learning Tool For Digital Electronics:

Designed to make electronic concepts easier to understand. Ideal for digital logic lessons, electronics experiments, computer science fundamentals, classroom demonstrations, and STEM learning projects.

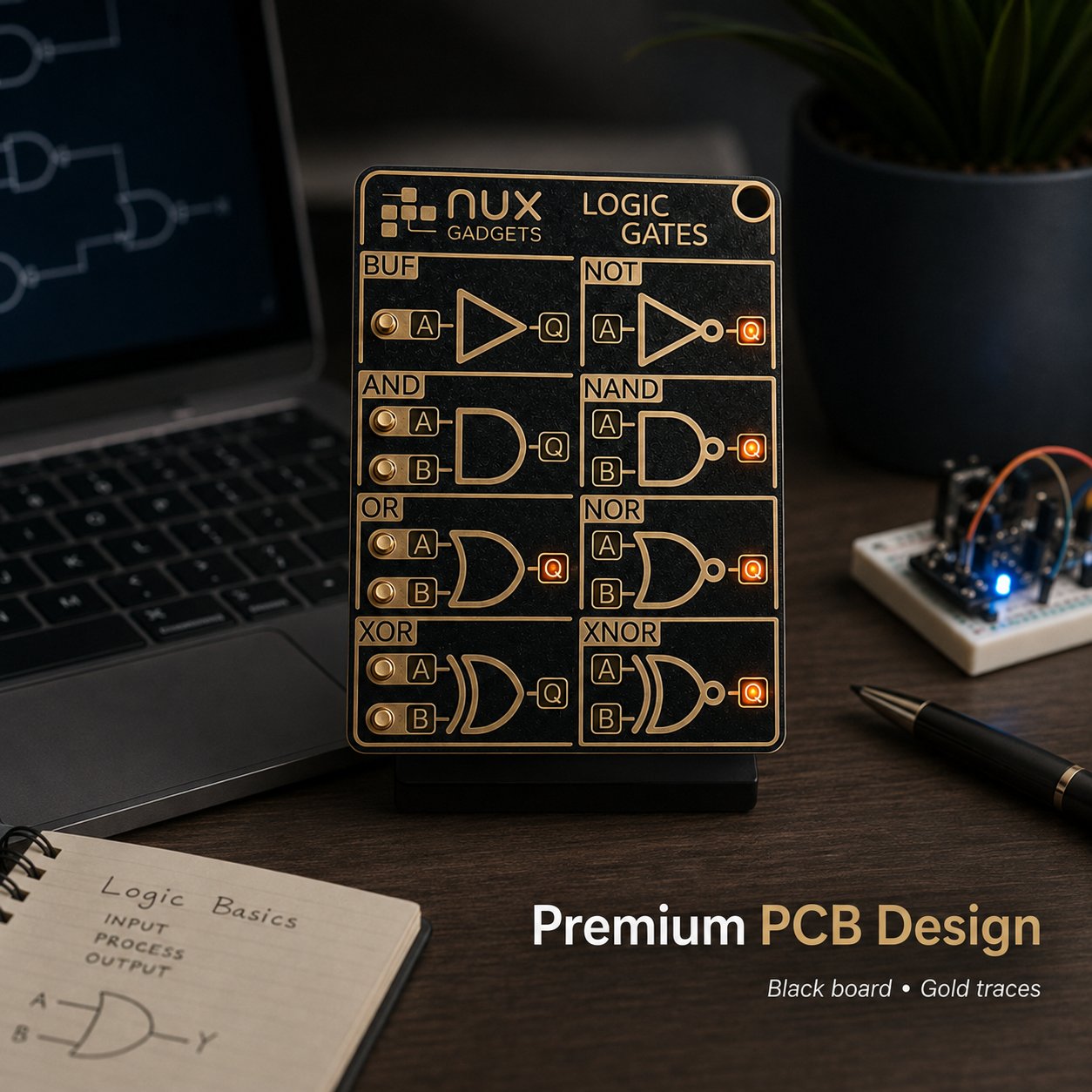

🖤 Premium Industrial Circuit Design:

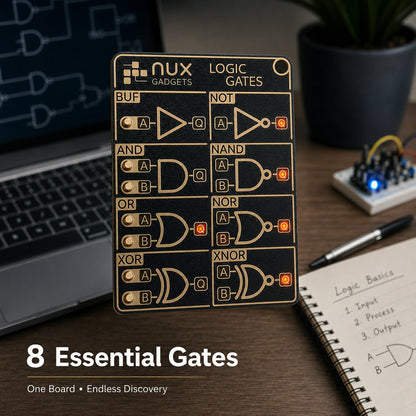

Features a sleek black PCB with gold-plated circuit traces, standard international logic gate symbols, and reserved mounting holes. The exposed circuit aesthetic creates a unique technology-inspired desktop piece!

How To Use The Logic Gate Board

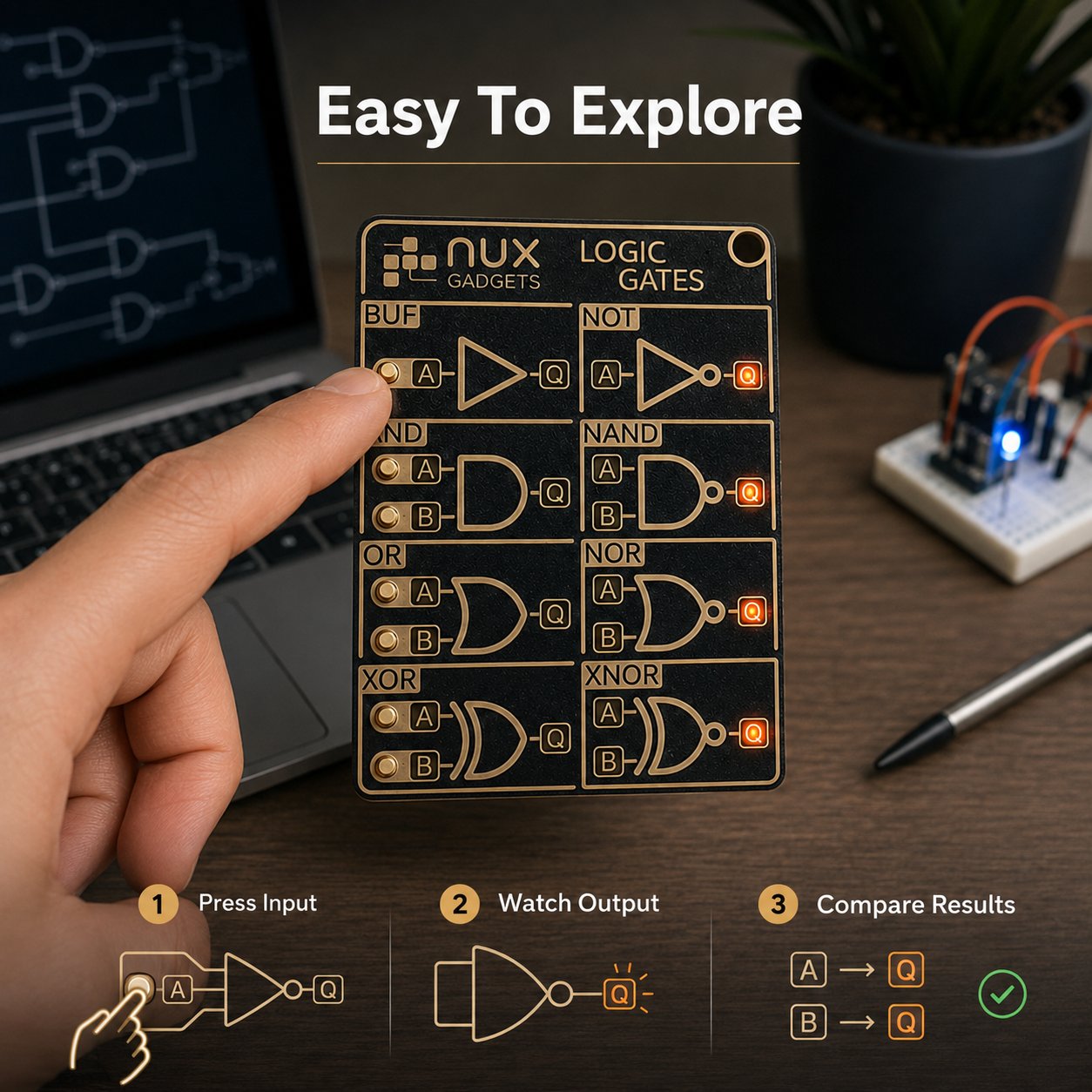

Step 1: Choose the logic gate section you want to explore.

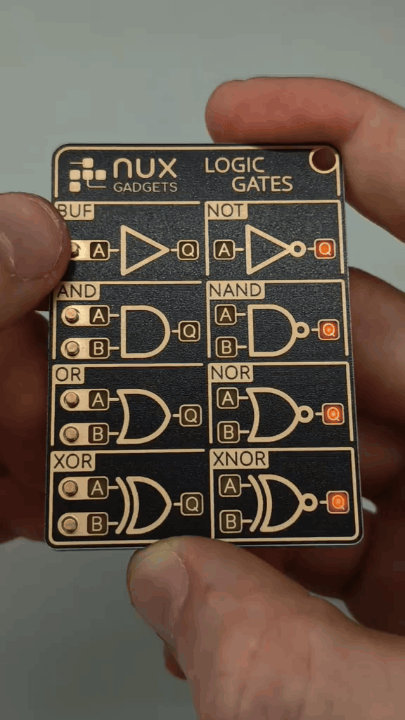

Step 2: Press the metal touch input contacts to activate the input signal (Pressed = High/1, Released = Low/0).

Step 3: Observe the LED output (💡 Light ON = Output 1, ⚫ Light OFF = Output 0).

Step 4: Try different input combinations and compare how each gate behaves!

Product Type: Interactive Logic Gate Demonstration Board

Material: PCB Circuit Board + High-Grade Electronic Components

Board Aesthetics: Black PCB With Gold Circuit Traces

Logic Units (8 Gates): BUF, NOT, AND, NAND, OR, NOR, XOR, XNOR

Input Method: Press-Type Metal Touch Contacts

Output Display: Bright LED Indicator Lights

Power & Setup: Built-In Circuit Power System (No External Wiring Required)

Q: Do I need electronic knowledge to use it?

A: No! The board is designed for beginners. Simply press the input contacts and observe the LED response instantly.

Q: Does it require complicated wiring?

A: No. Everything is integrated directly onto the PCB. No breadboards, jumper wires, or extra circuit assembly needed.

Q: Who is this product suitable for?

A: It is suitable for students, electronics beginners, teachers, hobbyists, makers, and anyone curious about how digital logic works.

Q: Can it be used as a classroom demonstration tool?

A: Yes! The clear, real-time LED feedback makes it effortless for teachers to demonstrate logic gate principles to a group.
